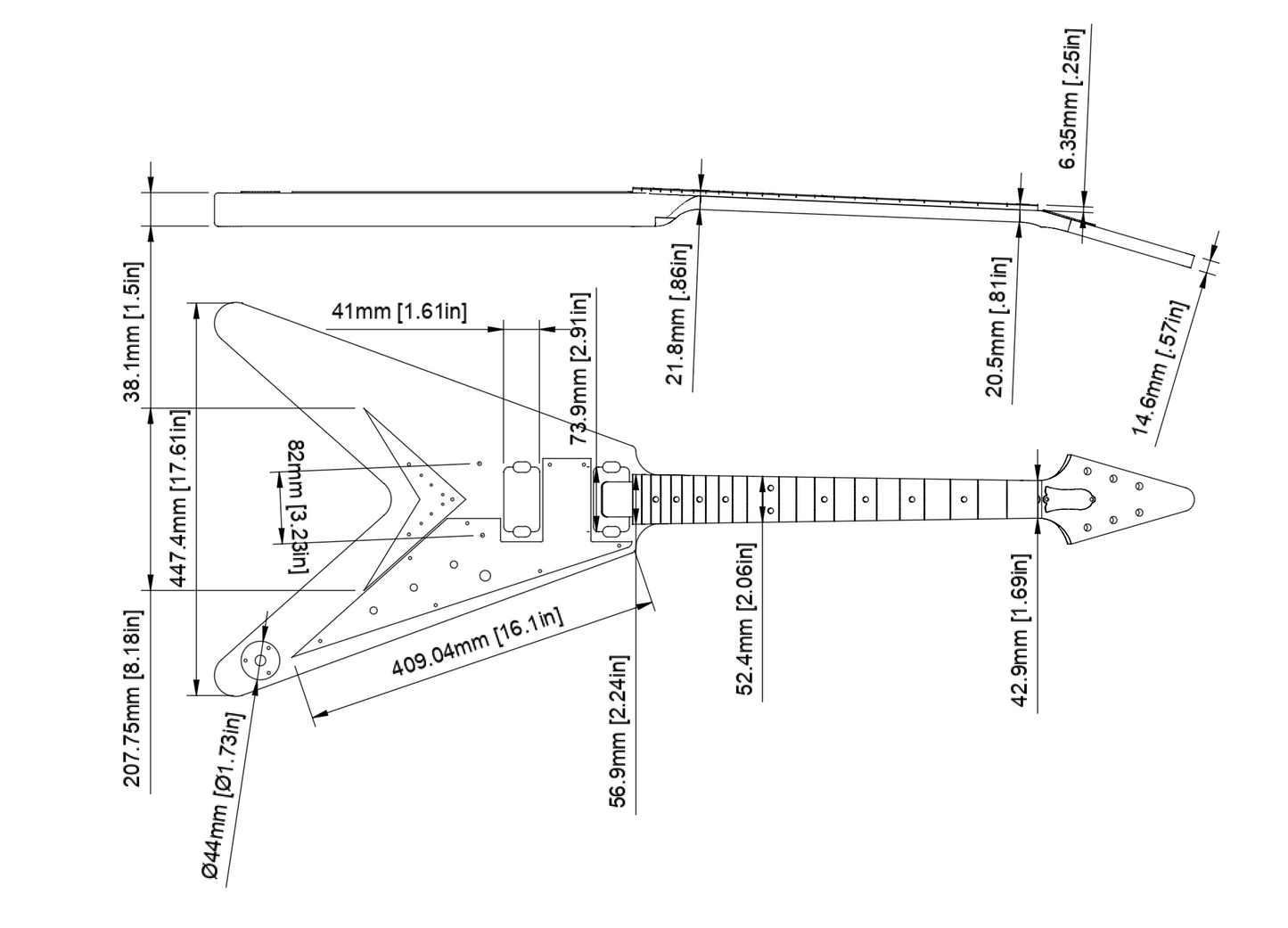

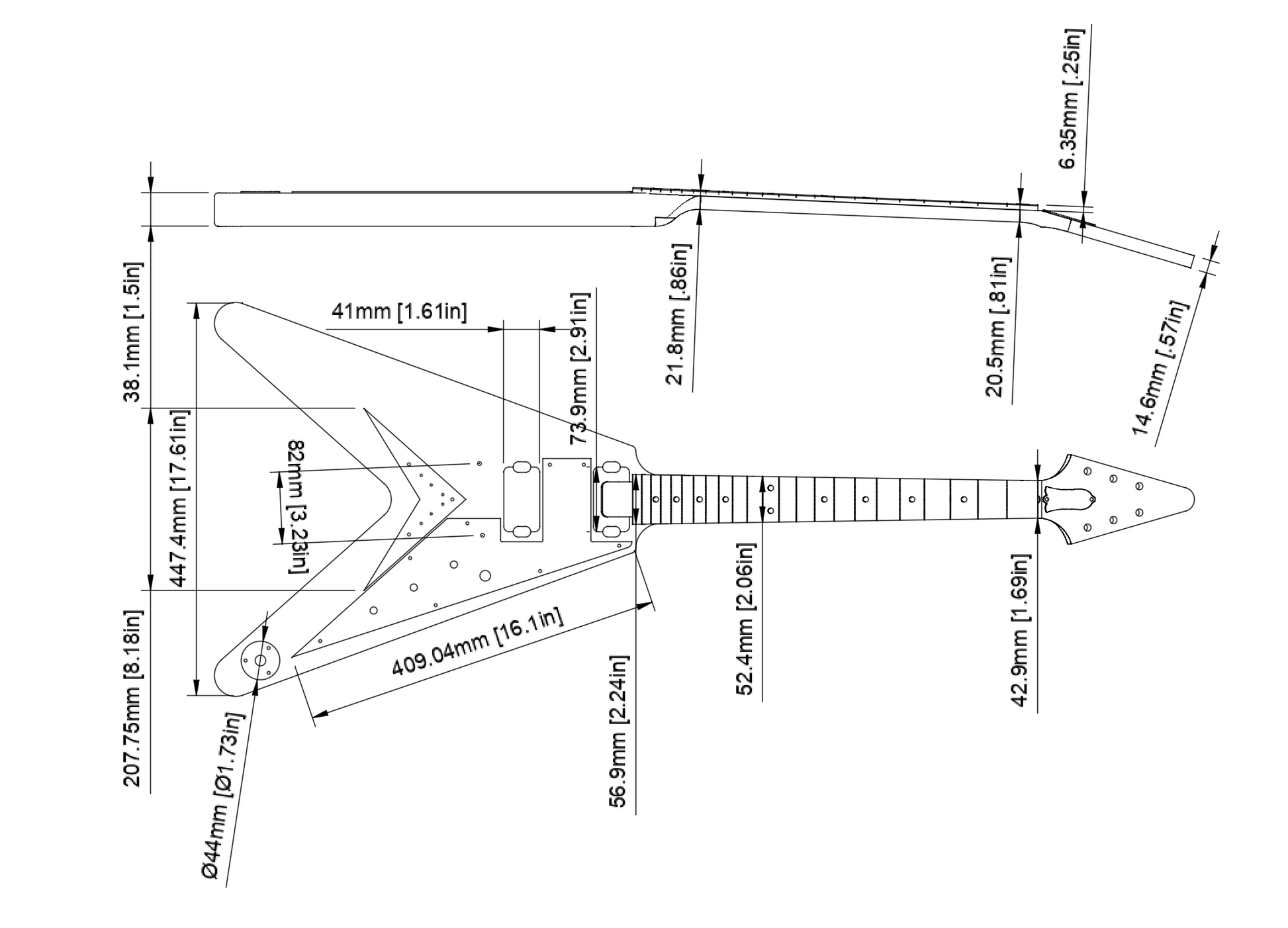

Specs:
Scale lenght: 24 5/8″ (628.65mm)
Nut width: 42.8mm/1,677"

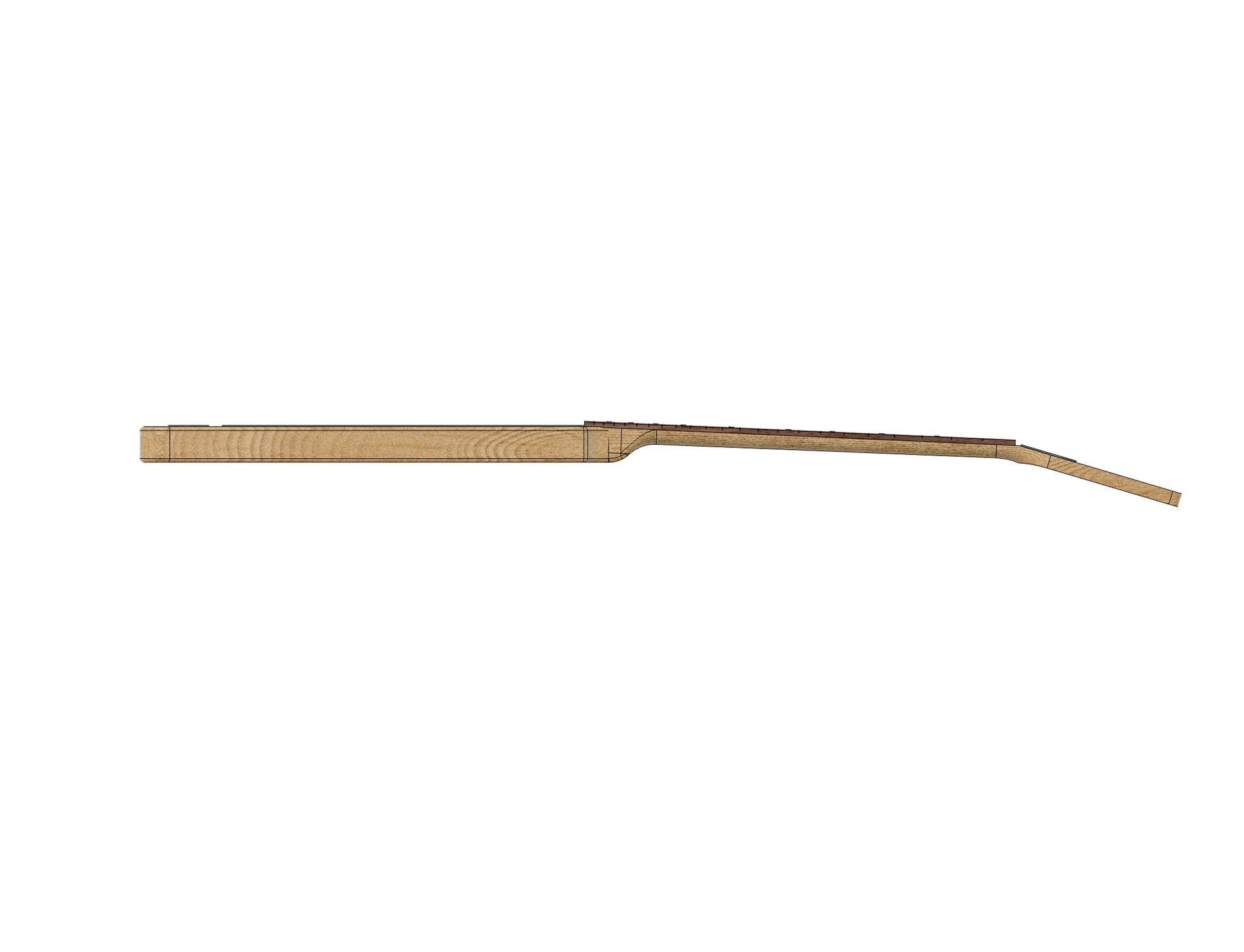

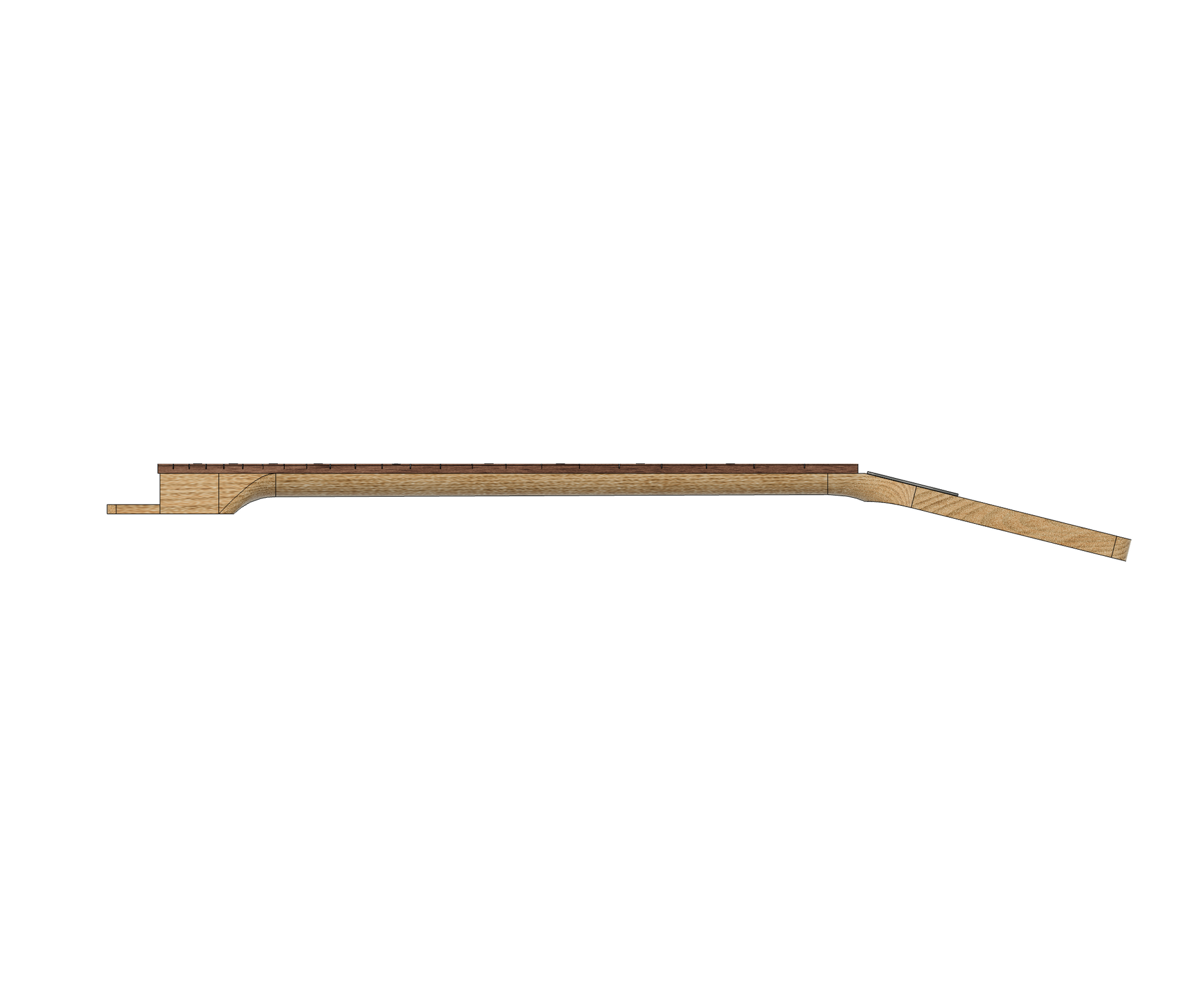

Neck angle: 2.5 degrees
Neck thickness 1st fret: 20.32mm/0.8"
Neck thickness 12th fret: 21.59mm/0.850"
Fretboard thickness: 6.35mm/0.25"
Trussrod cavity: 460mm/18.1"(Dual Action)
Nut Thickness: 4.5mm/0.177"
Peghole diameter:8mm/0.315''
Bridge setup: Tune O matic
Upon purchase, you'll receive a compressed zip file containing F3D, STL, DXF, SVG, STEP, 3MF, SKP, SMT files compatible with various design software. Please note that tool paths are not included.
This is not a physical product and no physical guitar body will be delivered. By Etsy return policy it’s not possible refund digital products.
Compatible with original Gibson hardware.
Need a thicker or a thinner neck pocket, extra pickup ? Contact for personalisation in design.

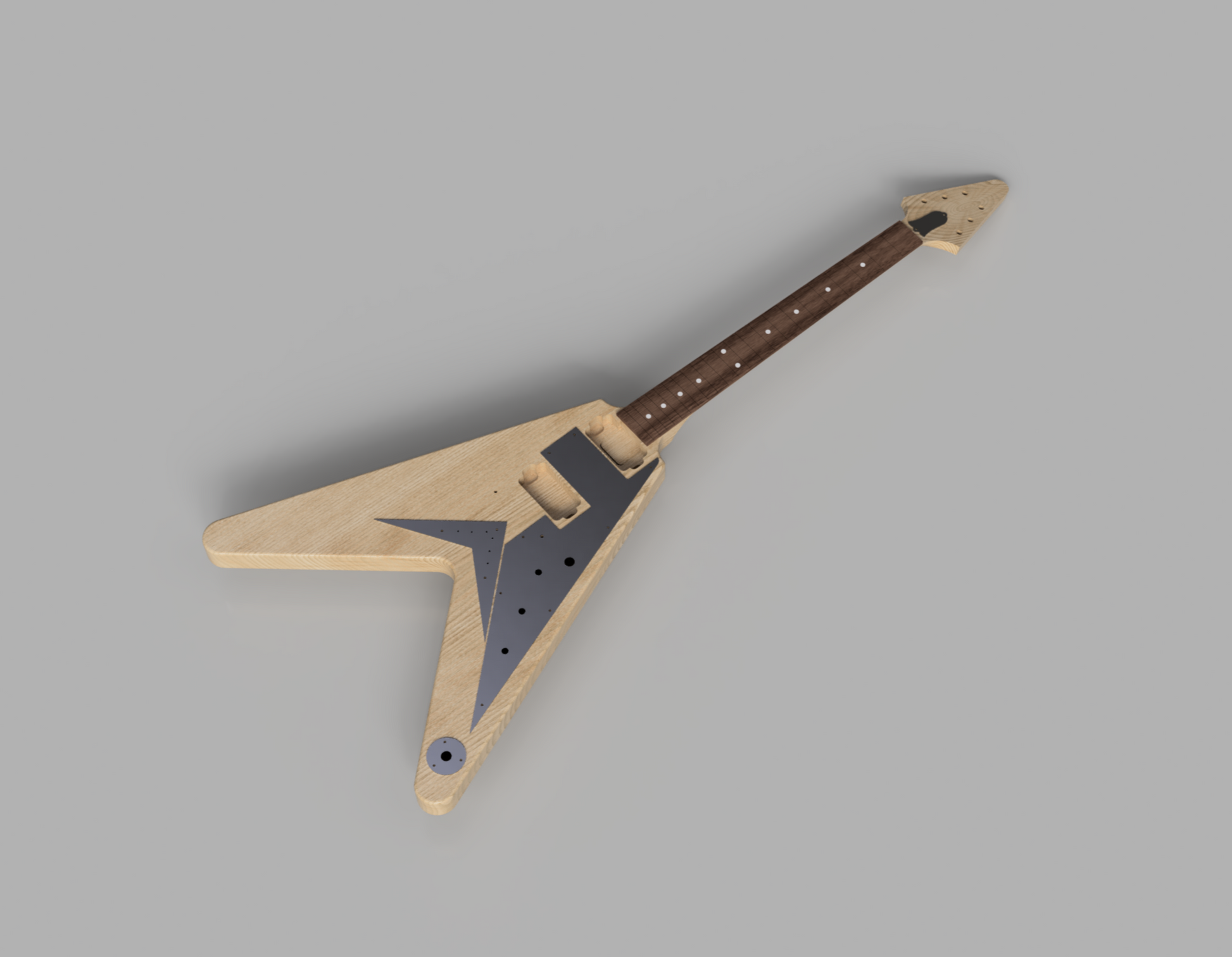

The designs rendered using Autodesk Fusion 360. Upon confirmation of payment, your downloads will be accessible through your Etsy receipt.
Should any issues arise with your order, please don't hesitate to reach out to us. Remember, these files are for personal use only and cannot be resold or shared.

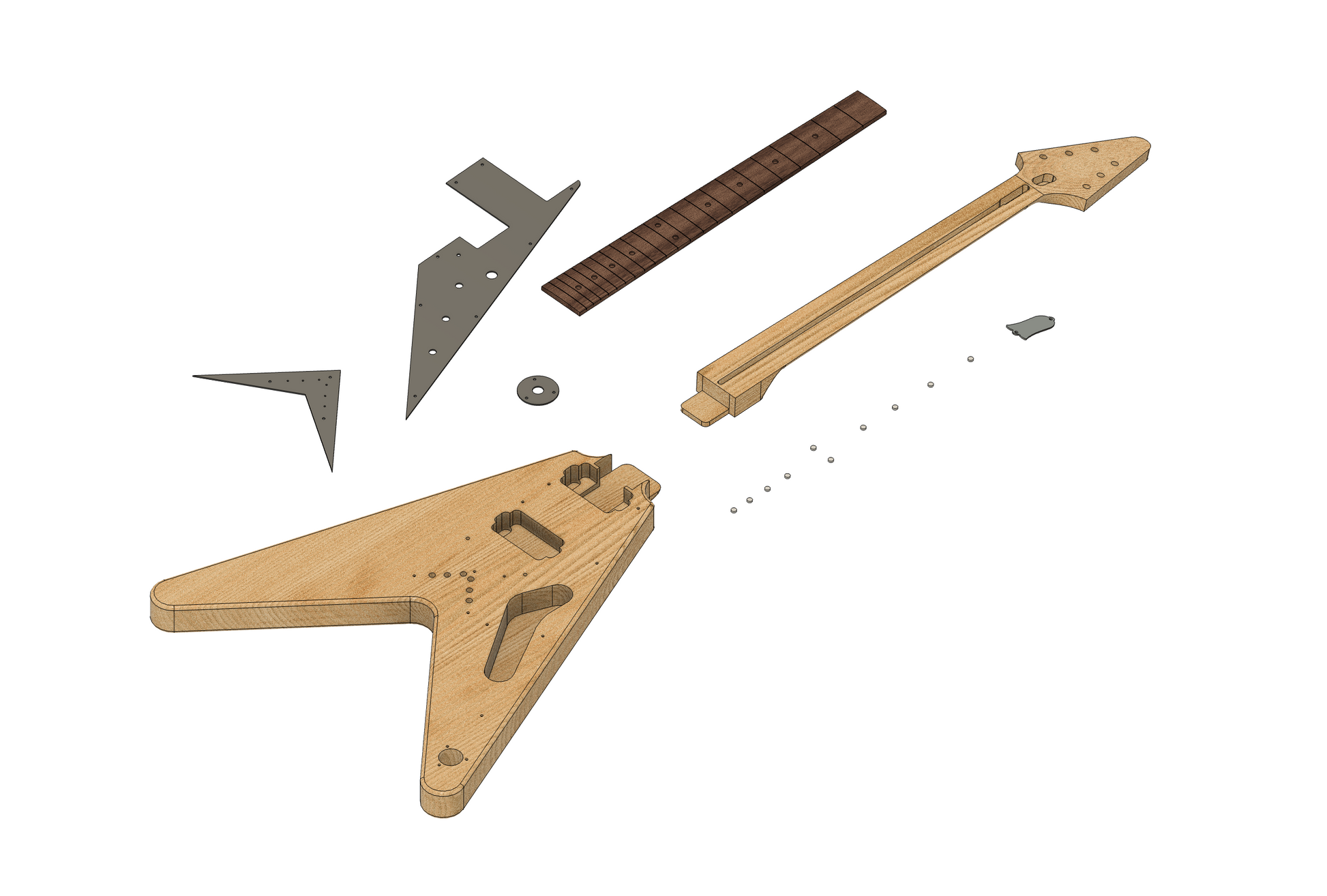

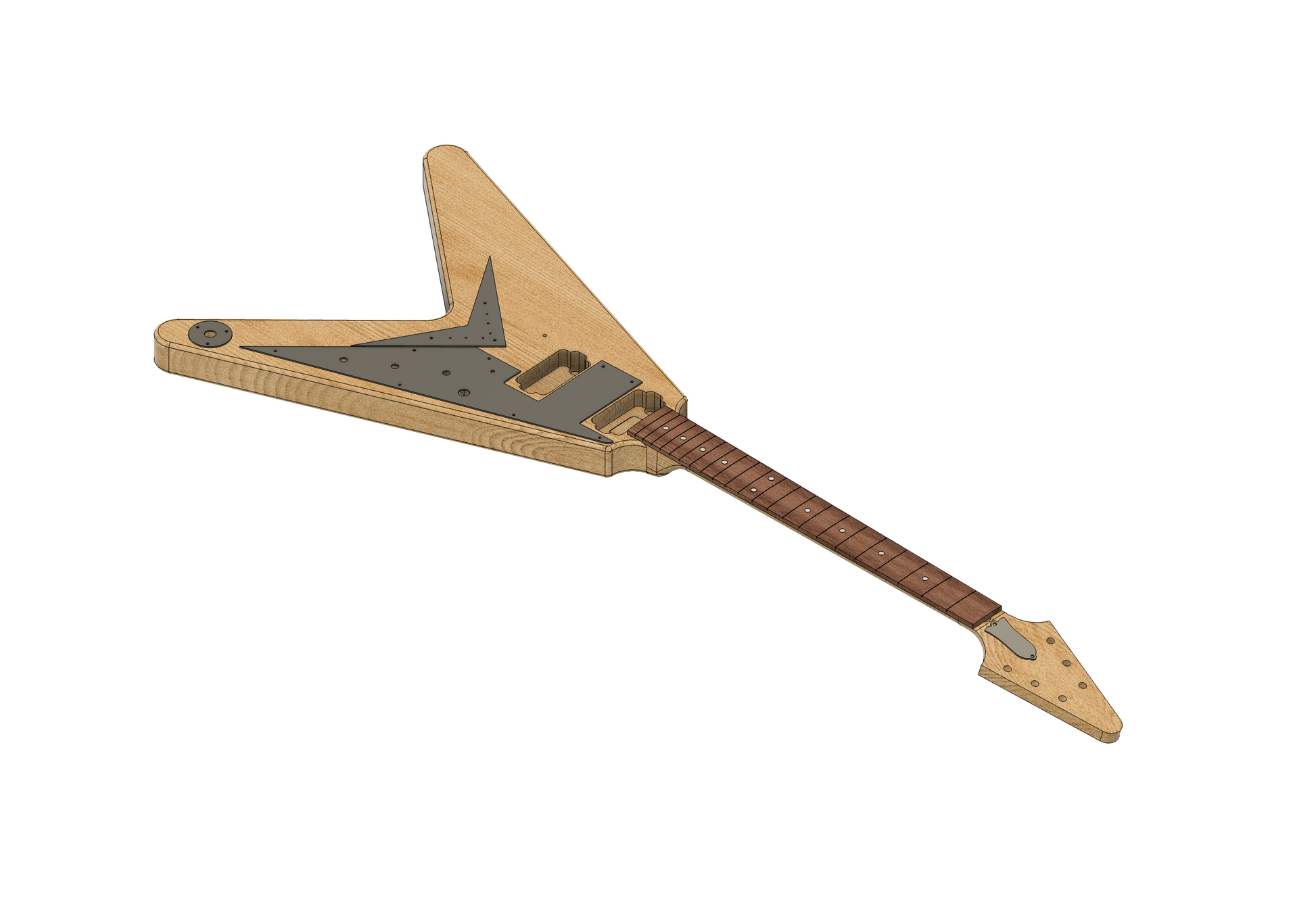

Wishing you success in creating your very own custom Flying V !
Markus from cncstuudio
