Limited Time
€30,00

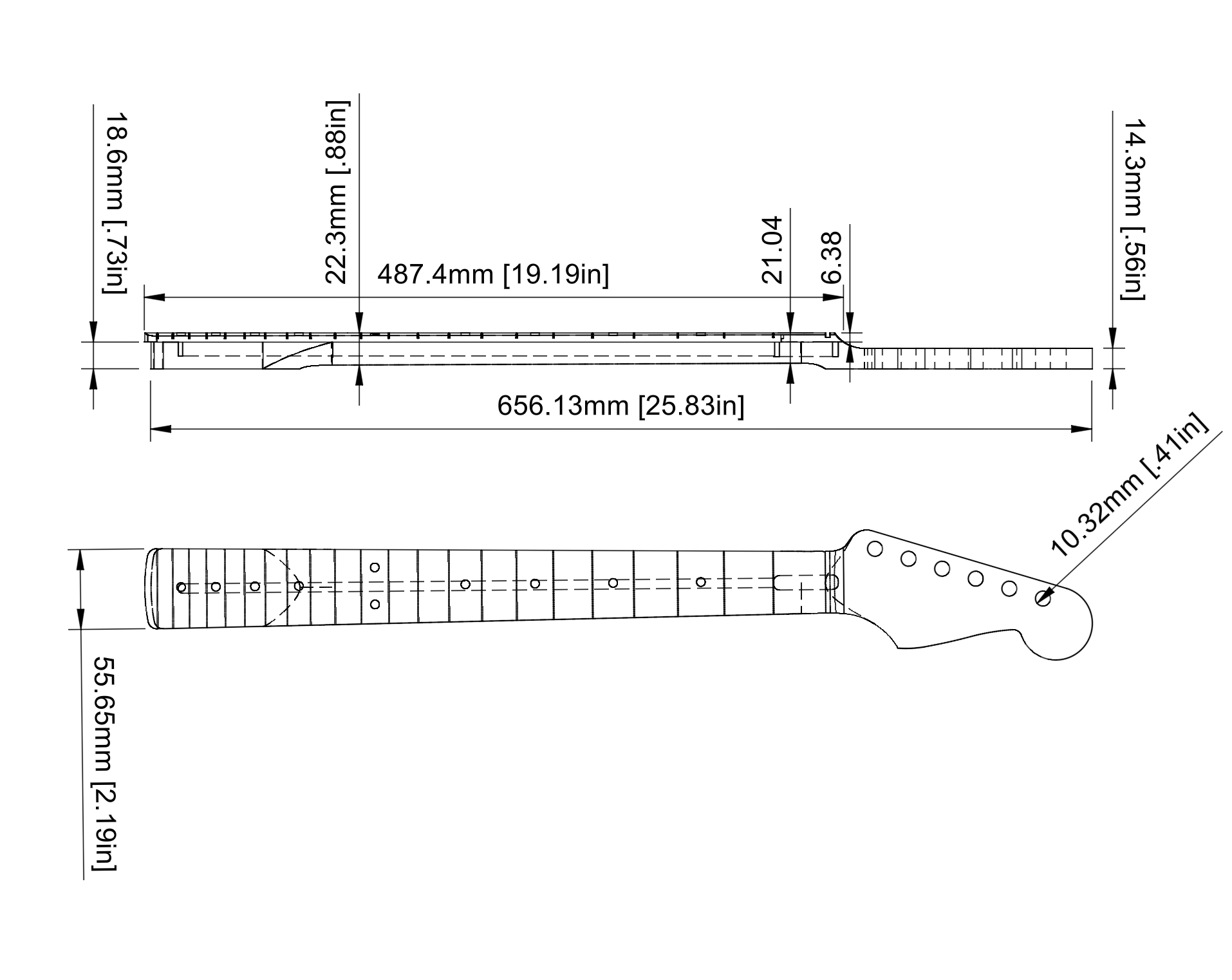

Specs:
Scale lenght: 25,5″ (650mm)
Nut width: 43mm/1,692"
Neck thickness 1st fret: 21mm/0.827"
Neck thickness 12th fret: 22.5mm/0.886"
Fretboard thickness: 6.3mm/0.248"
Trussrod cavity: 460mm/18.11"
Nut Thickness: 3.5mm/0.138"
Peghole diameter:10.3mm/0.406''
Trussrod: 18''/460mm Hot Rod Low-profile 2-Way Truss Rod
Upon purchase, you'll receive a compressed zip file containing F3D, STEP, DXF, SVG, STL, 3MF, SKP files compatible with various design software. Please note that tool paths are not included.
This is not a physical product and no physical guitar body will be delivered. By return policy it’s not possible refund digital products.
Compatible with original Stratocaster hardware. Please double check your file and the body you plan to use, neck pocket dimensions may vary. File or neck may need adjusting to ensure a proper fit.

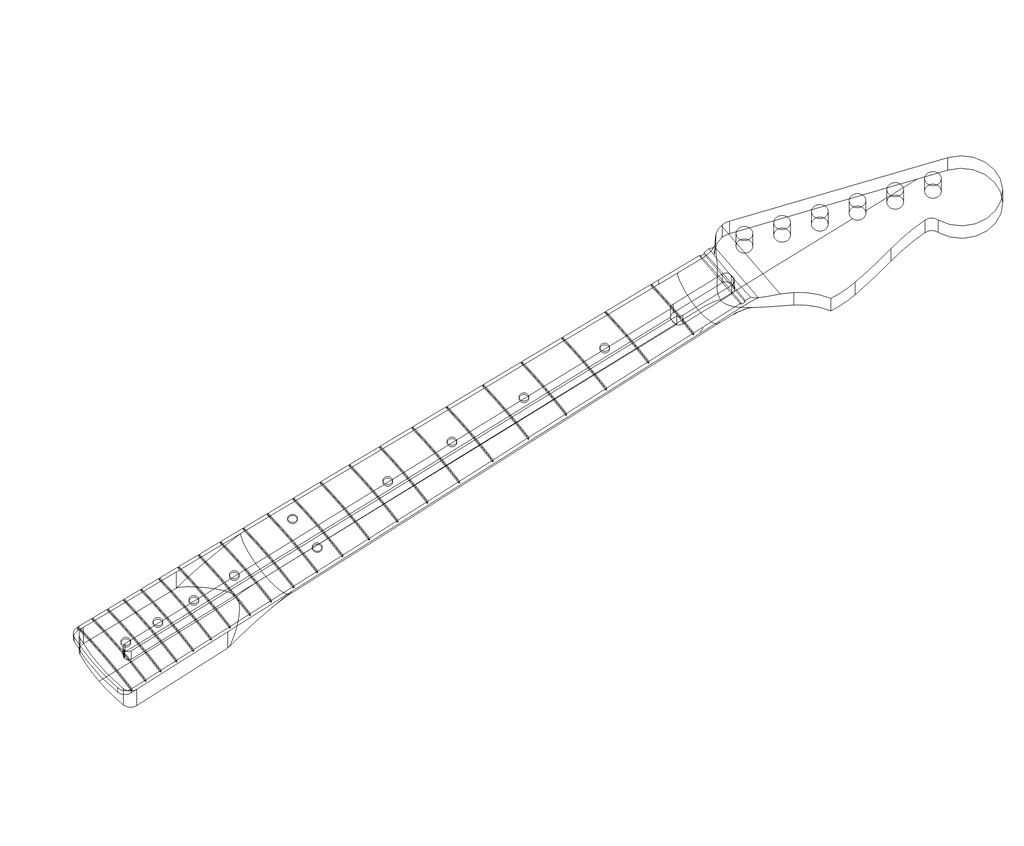

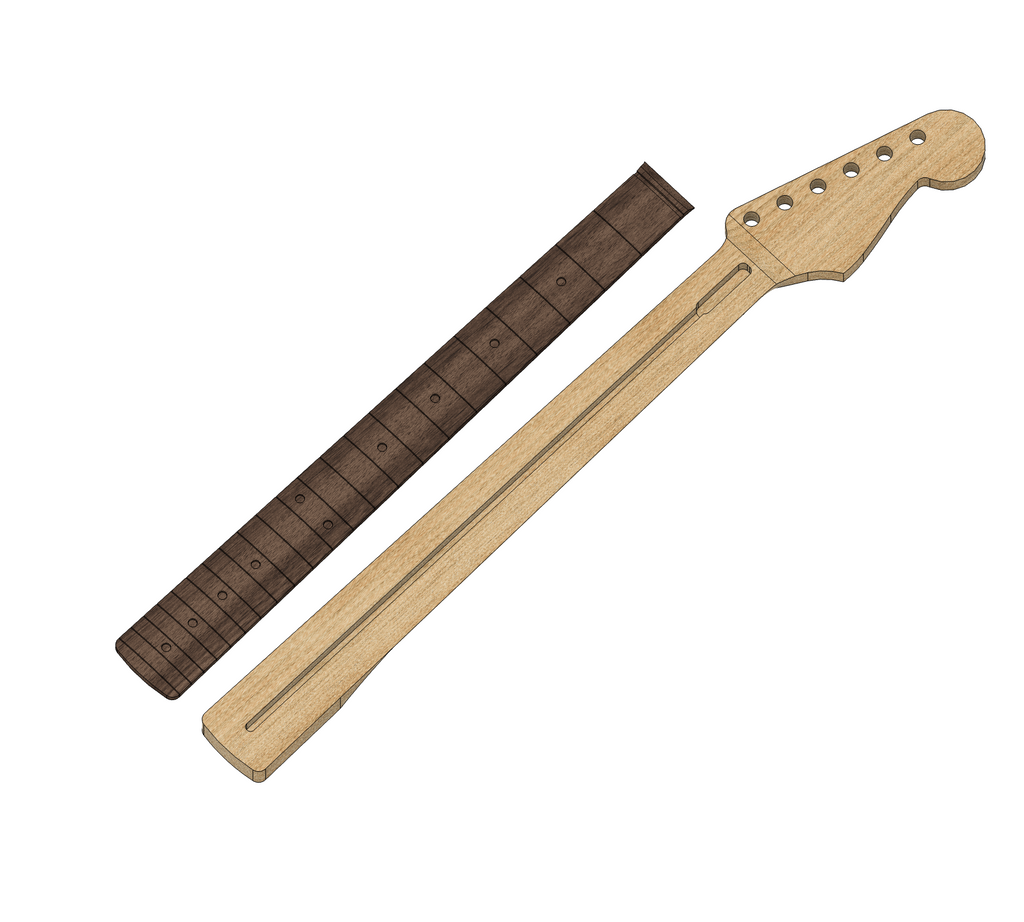

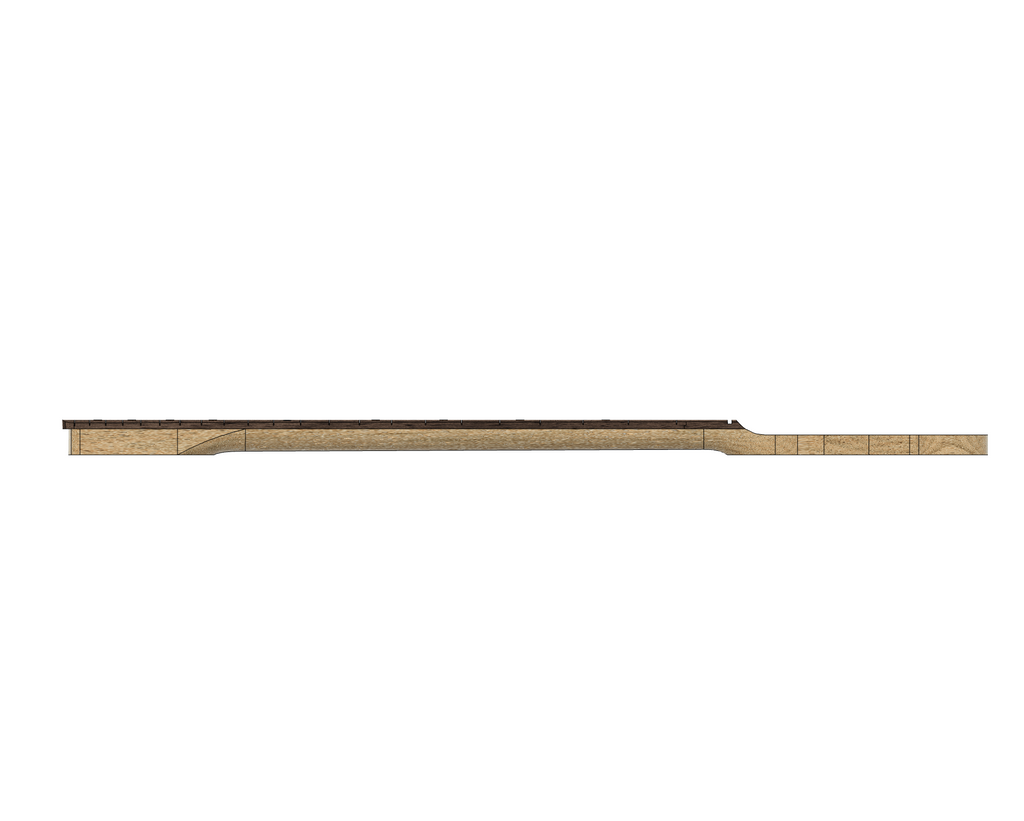

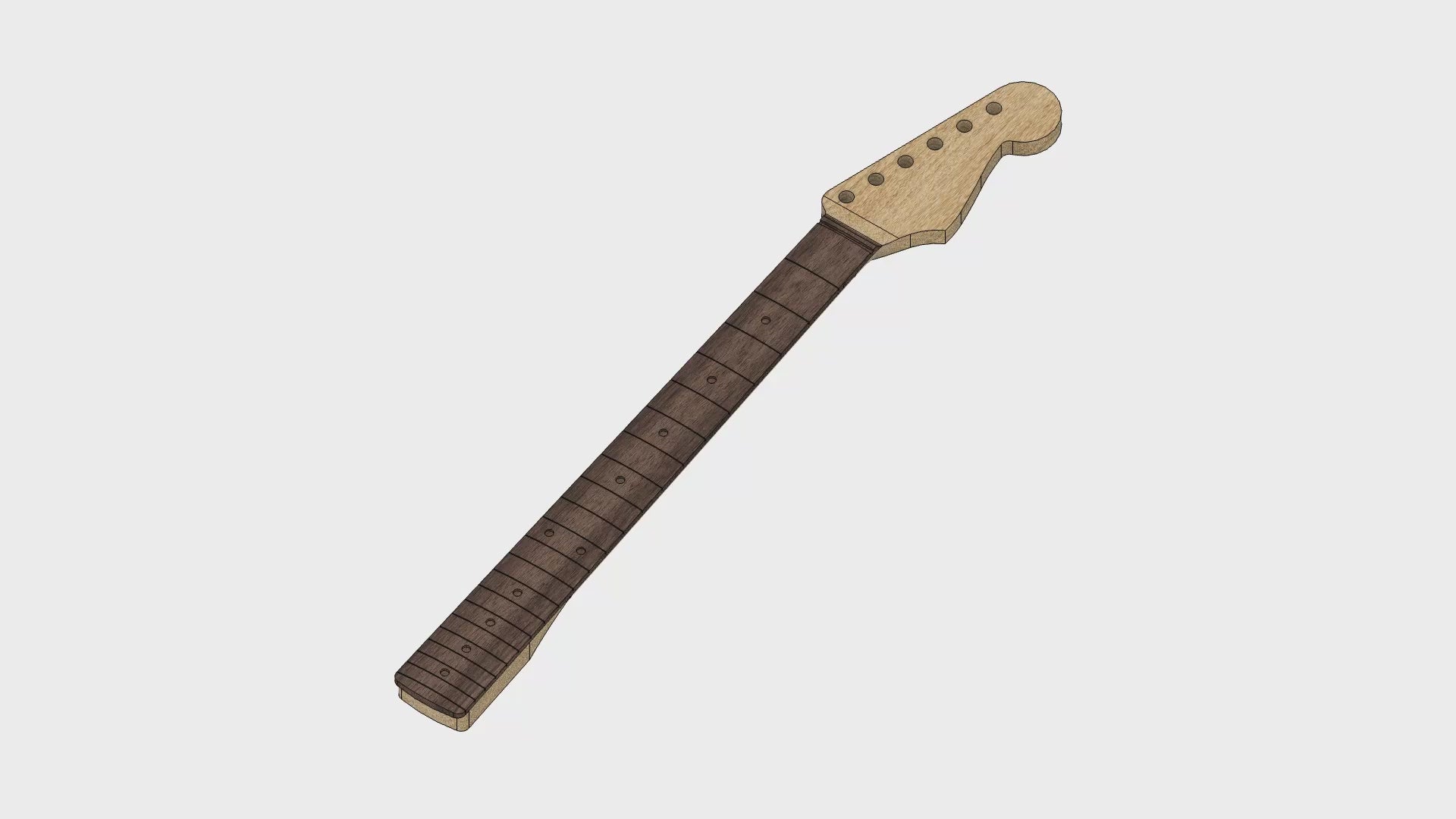

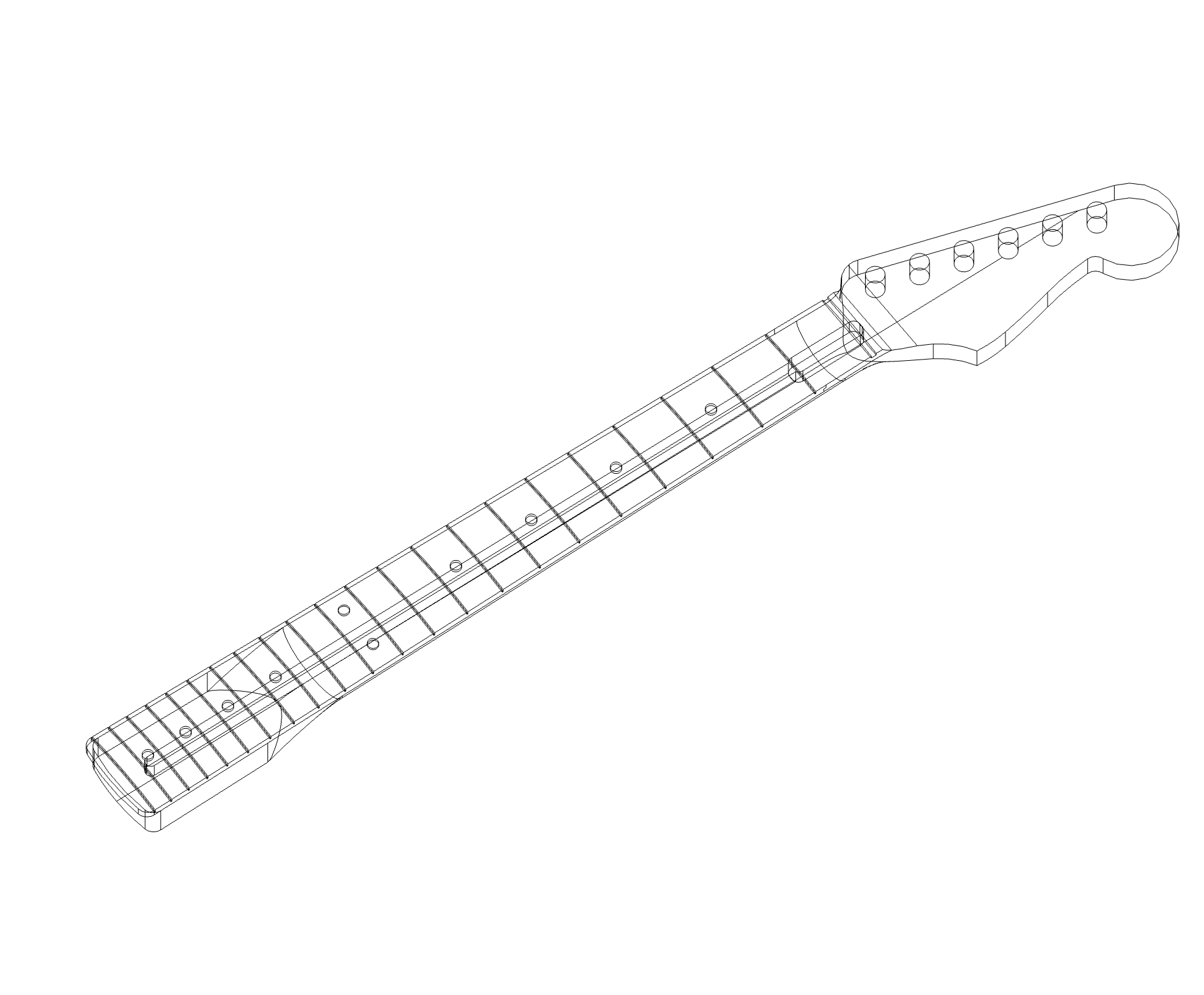

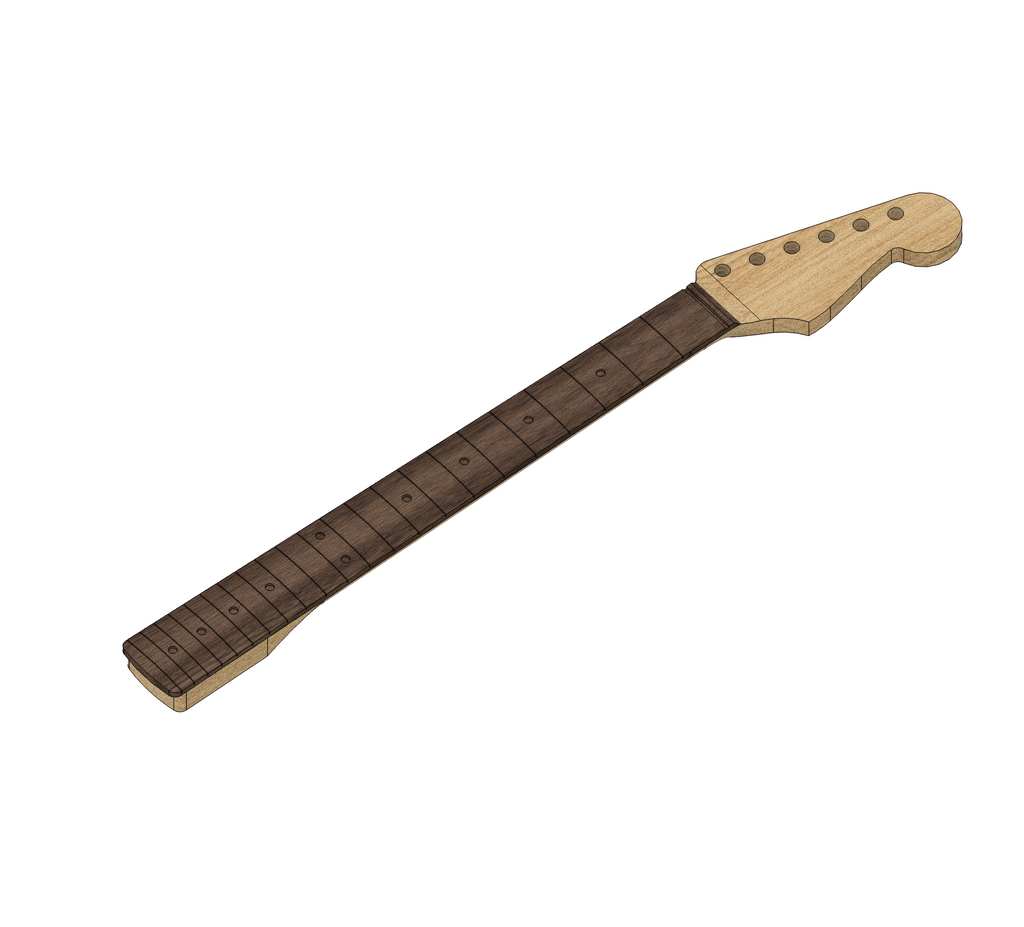

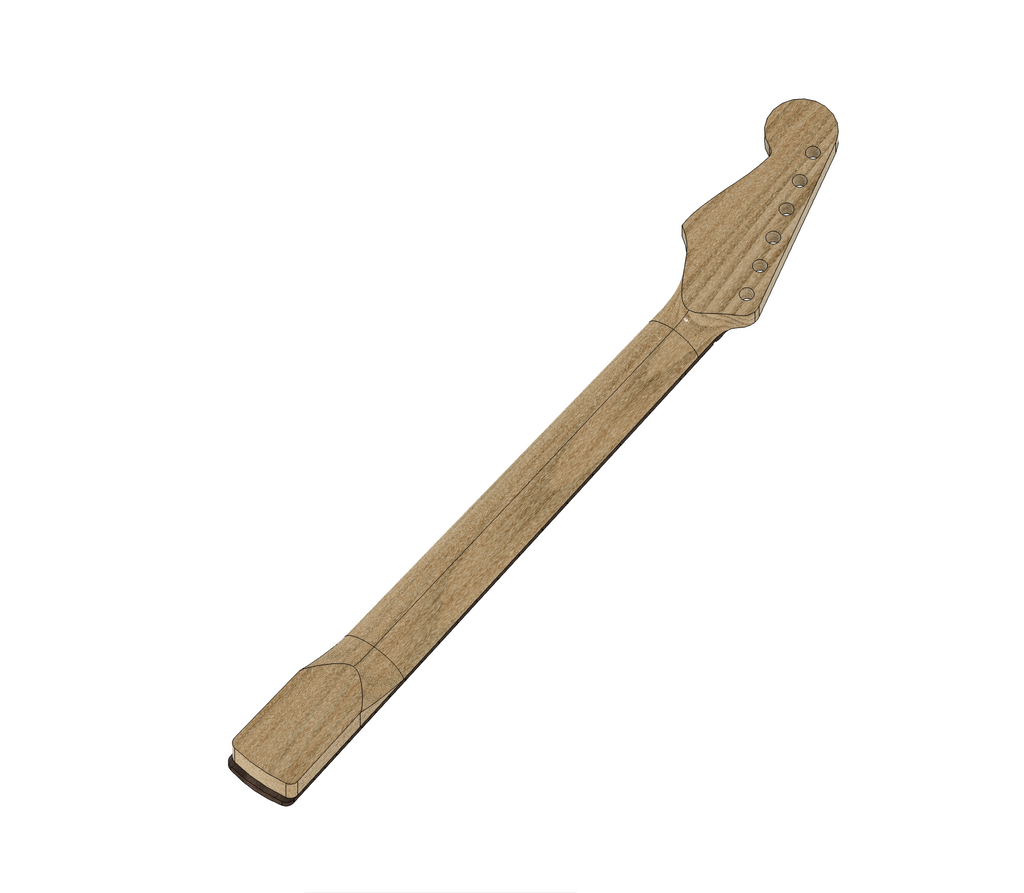

The designs were rendered using Autodesk Fusion 360. Upon confirmation of payment, your downloads will be accessible through your Etsy receipt.
Should any issues arise with your order, please don't hesitate to reach out to us. Remember, these files are for personal use only and cannot be resold or shared.
Wishing you success in creating your very own custom Stratocaster!
Markus from cncstuudio
