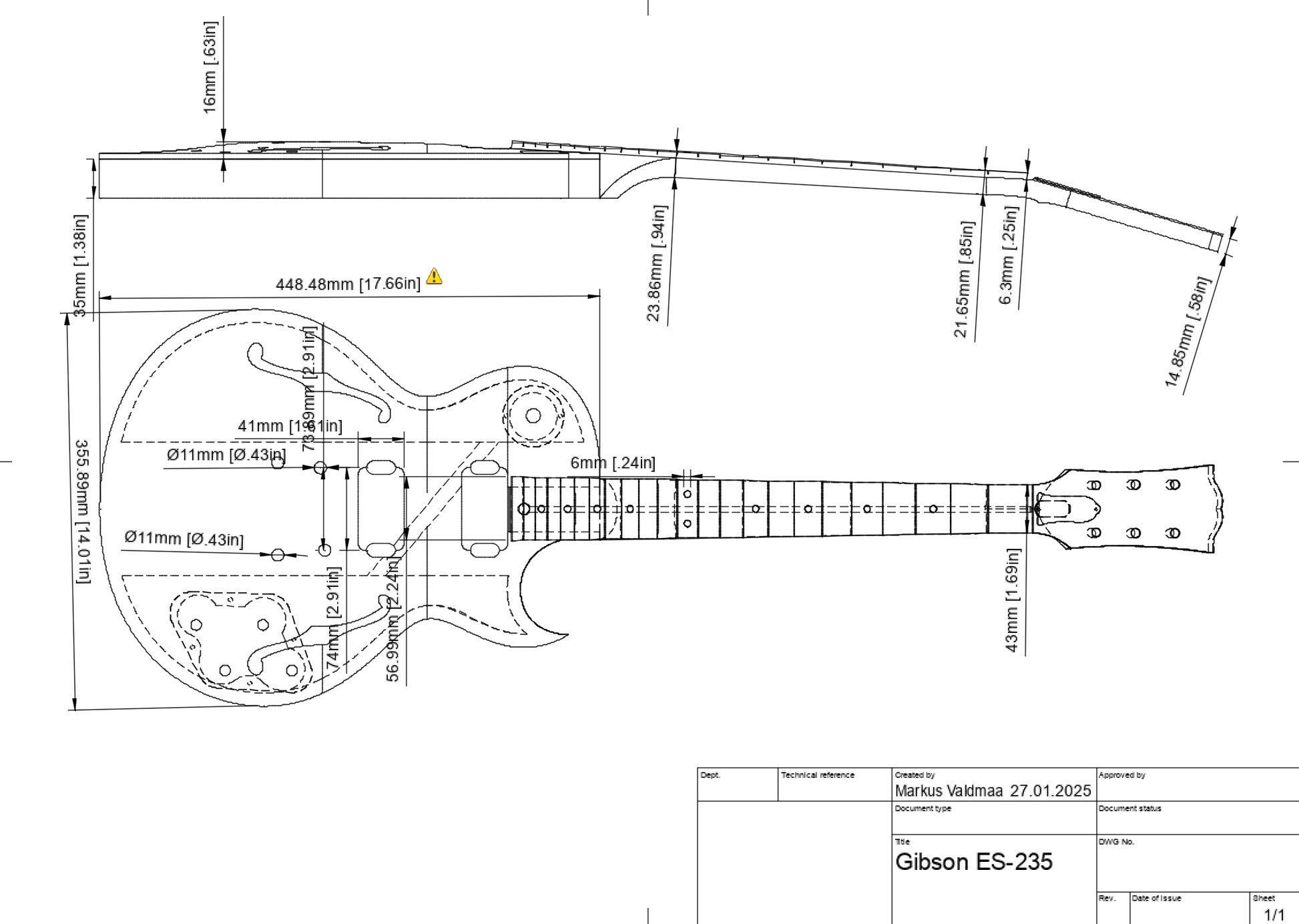

Specs:
Scale lenght: 24,75″ (628.75mm)
Nut width: 43mm/1,692"

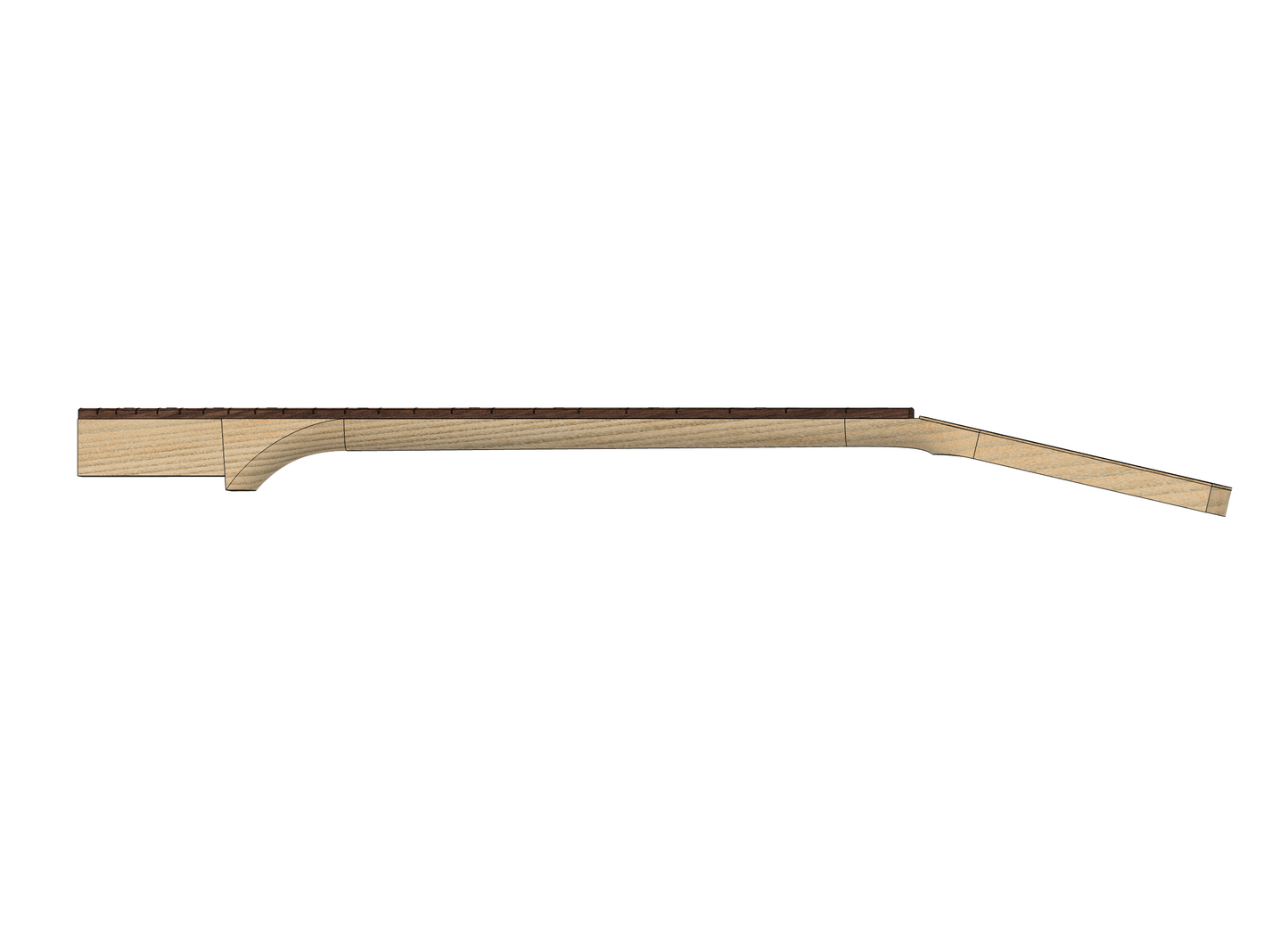

Neck thickness 1st fret: 21.6mm/0.827"
Neck thickness 12th fret: 23.8mm/0.937"
Fretboard thickness: 6.3mm/0.25"
Fretboard radius: 305mm/12”
Trussrod cavity: 460mm/18.11"
Nut Thickness: 5.5mm/0.216"

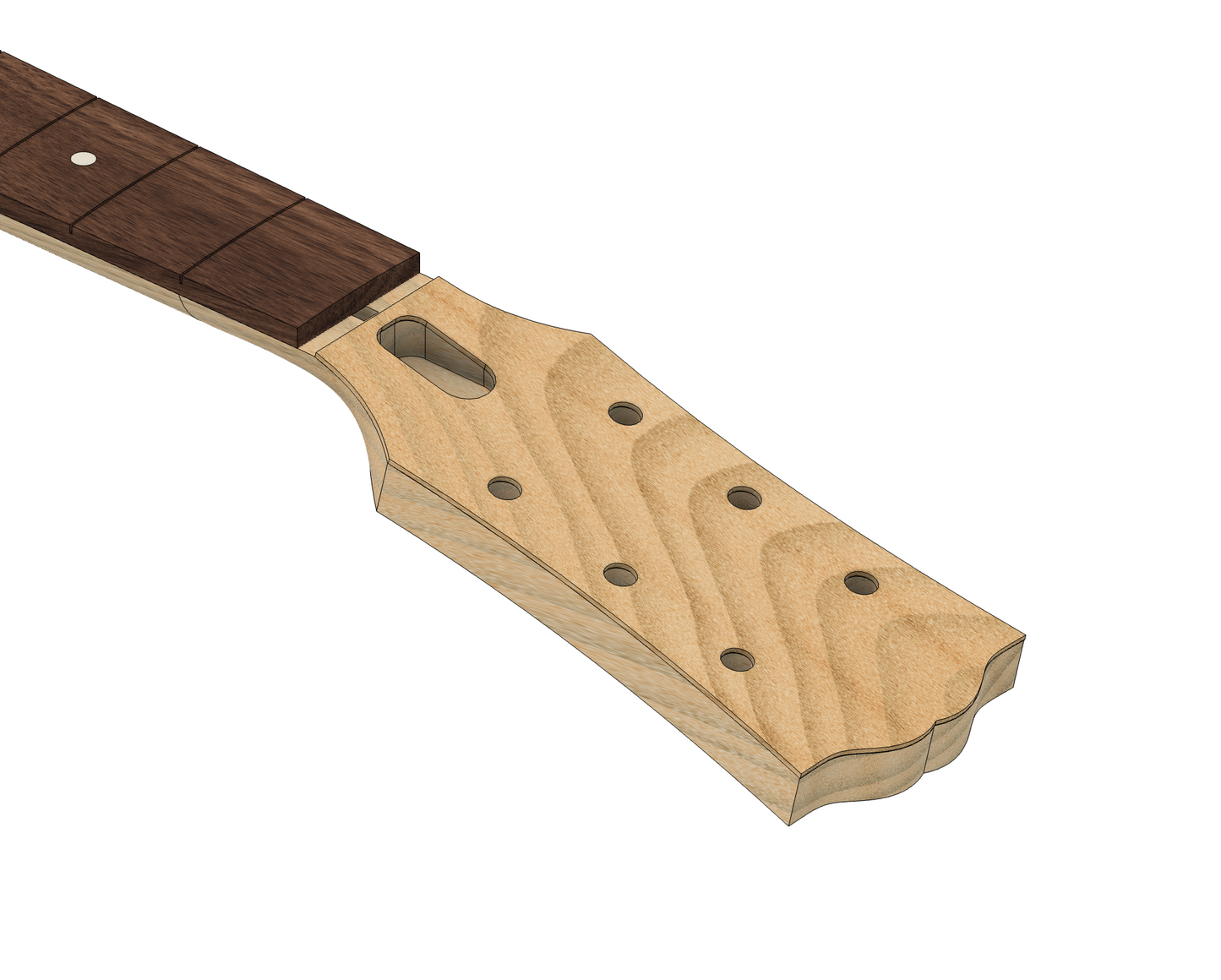

Peghole diameter:8mm/0.315''
Bridge: Tune O Matic
Frets: 22
Neck shape: C
Comes with 2 fretboards, one without binding and one with 1.6mm/0.064'' binding

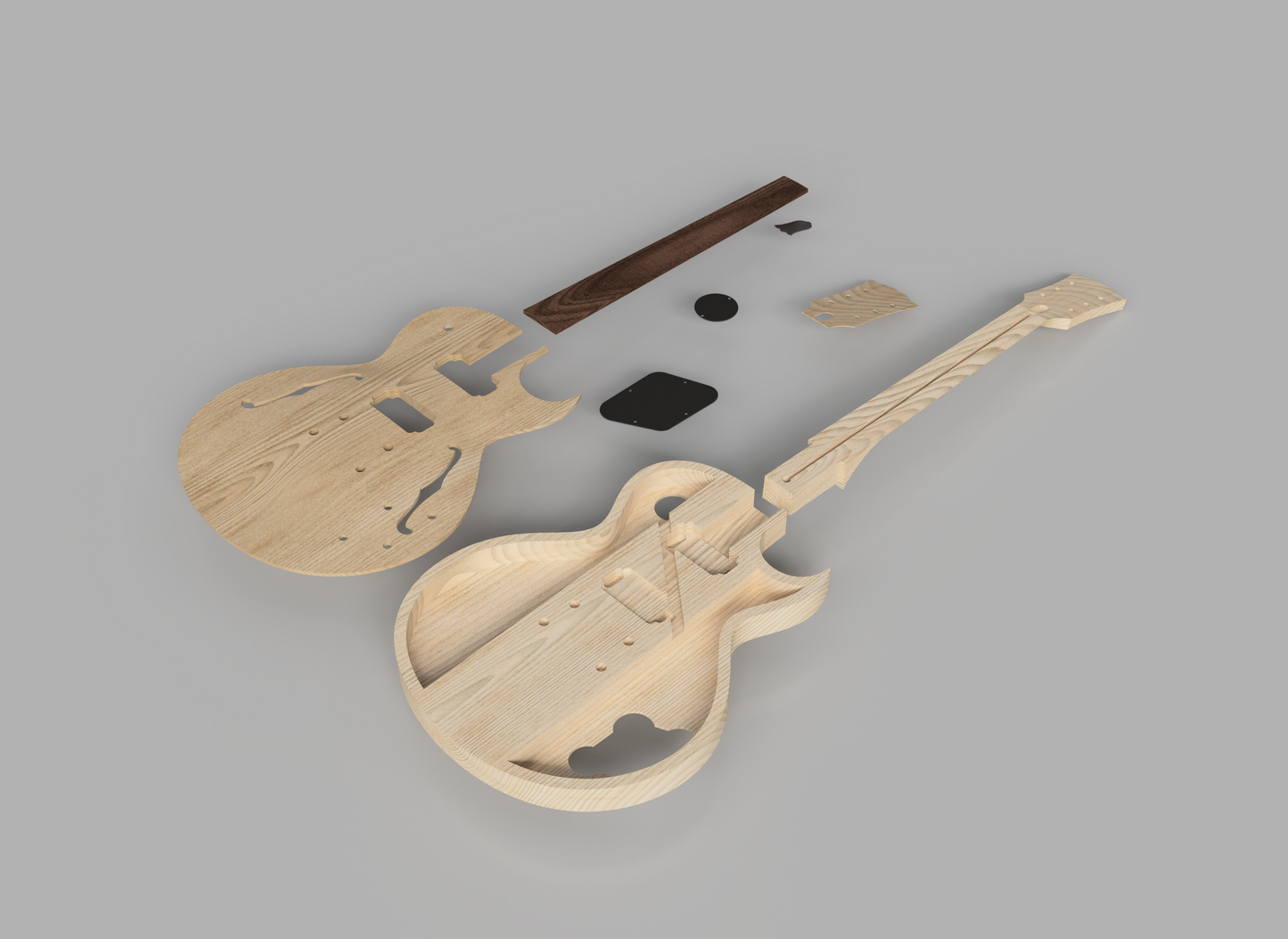

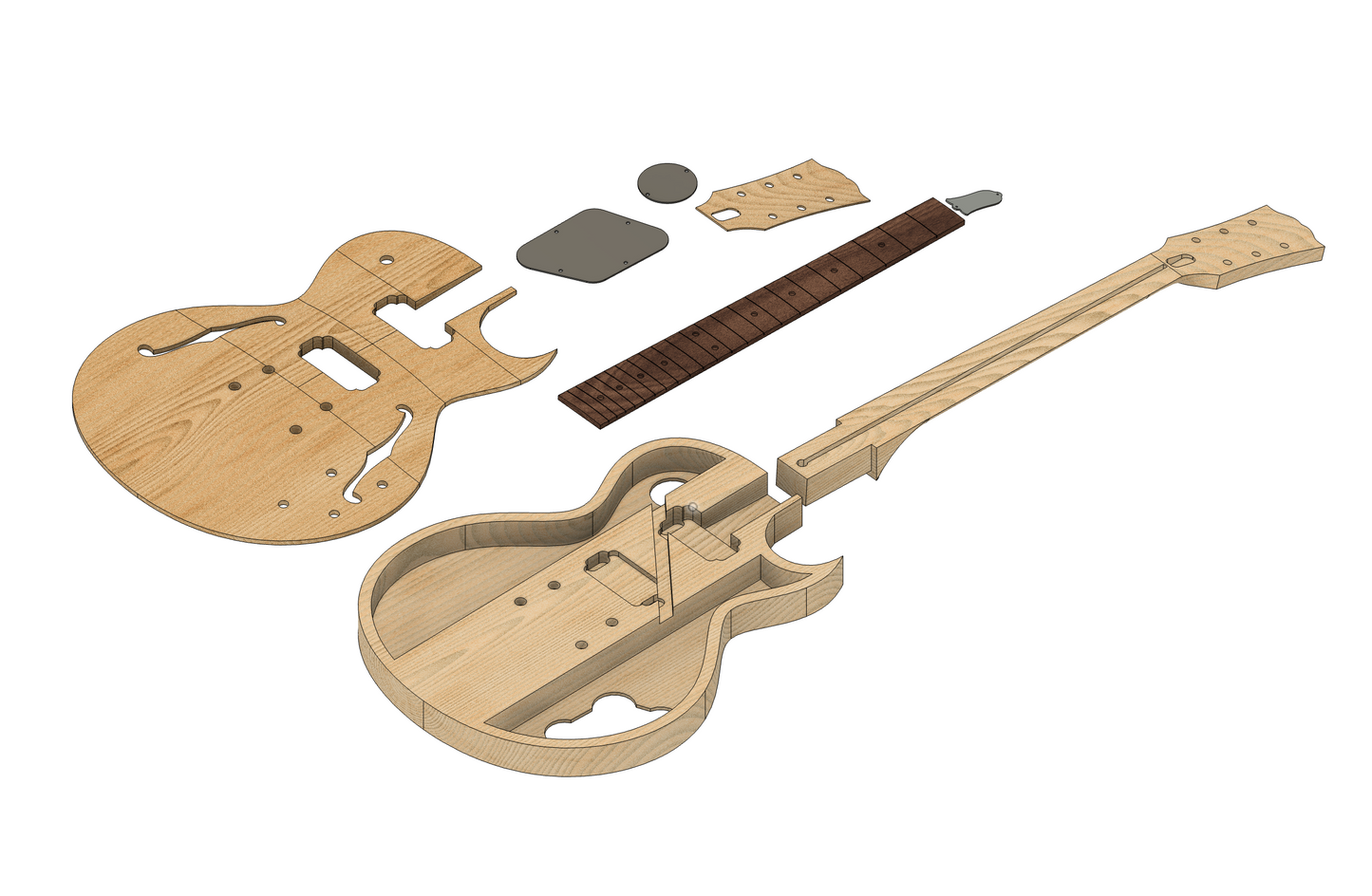

Upon purchase, you'll receive a compressed zip file containing F3D, STL, STEP, DXF, SVG, 3MF, SKP, SMT, OBJ, FBX, and USDZ files compatible with various design software. Please note that tool paths are not included. All Components come separately with file types named above.
This is not a physical product and no physical guitar body will be delivered. By Etsy return policy it’s not possible refund digital products.
Compatible with original Fender hardware. Please double check your file and the neck you plan to use, neck dimensions may vary. File or neck may need adjusting to ensure a proper fit.
Need a thicker or a thinner neck pocket, extra pickup ? Contact for personalisation in design.

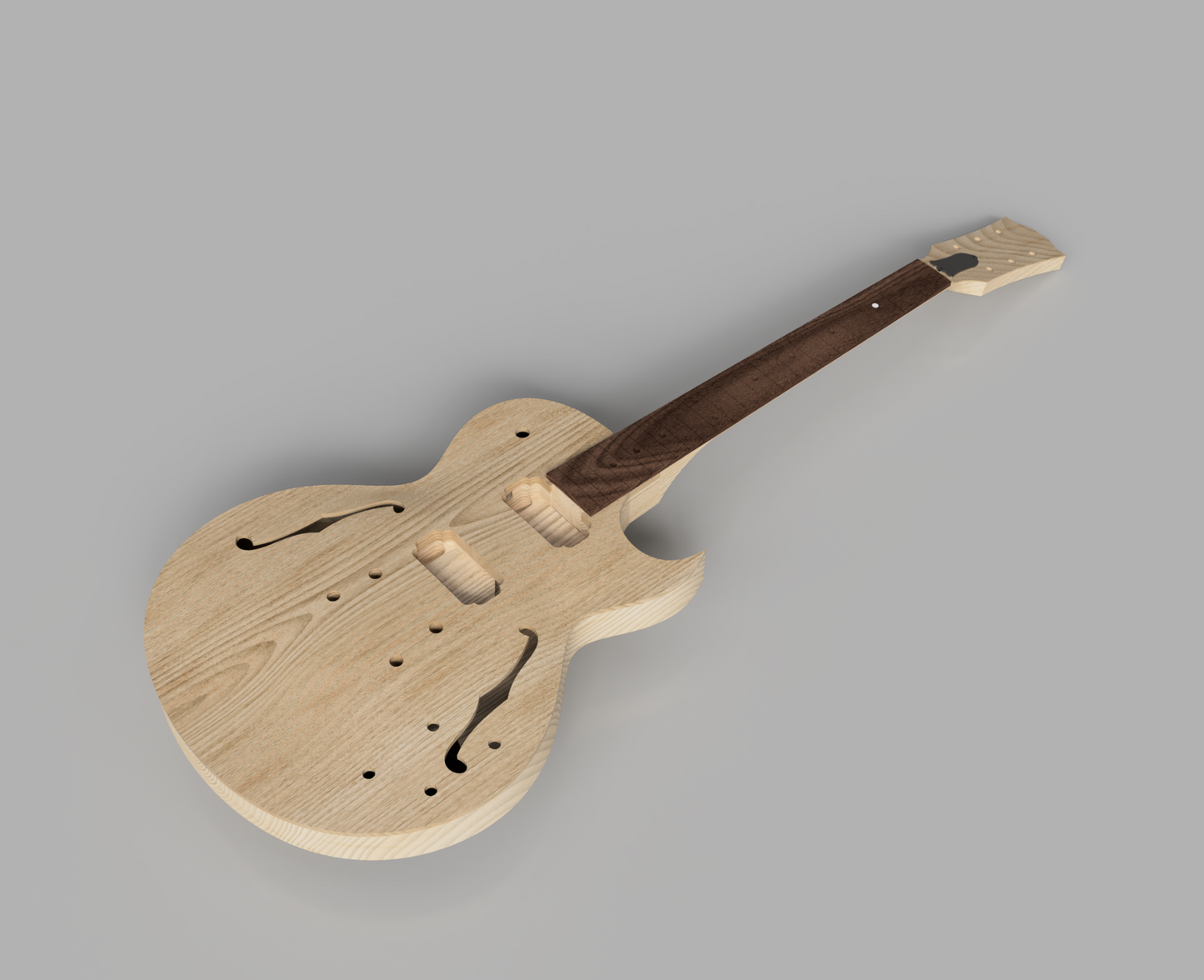

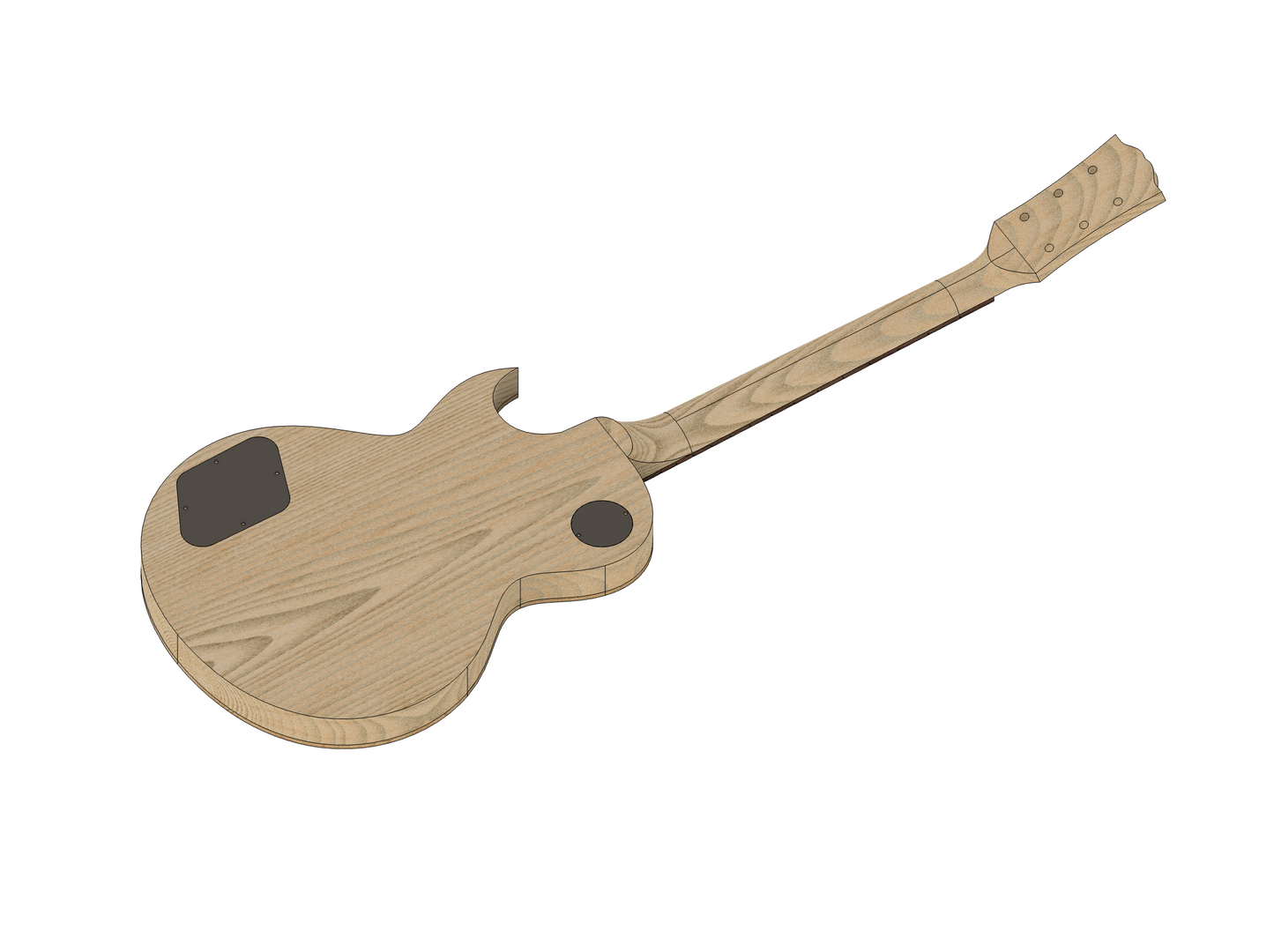

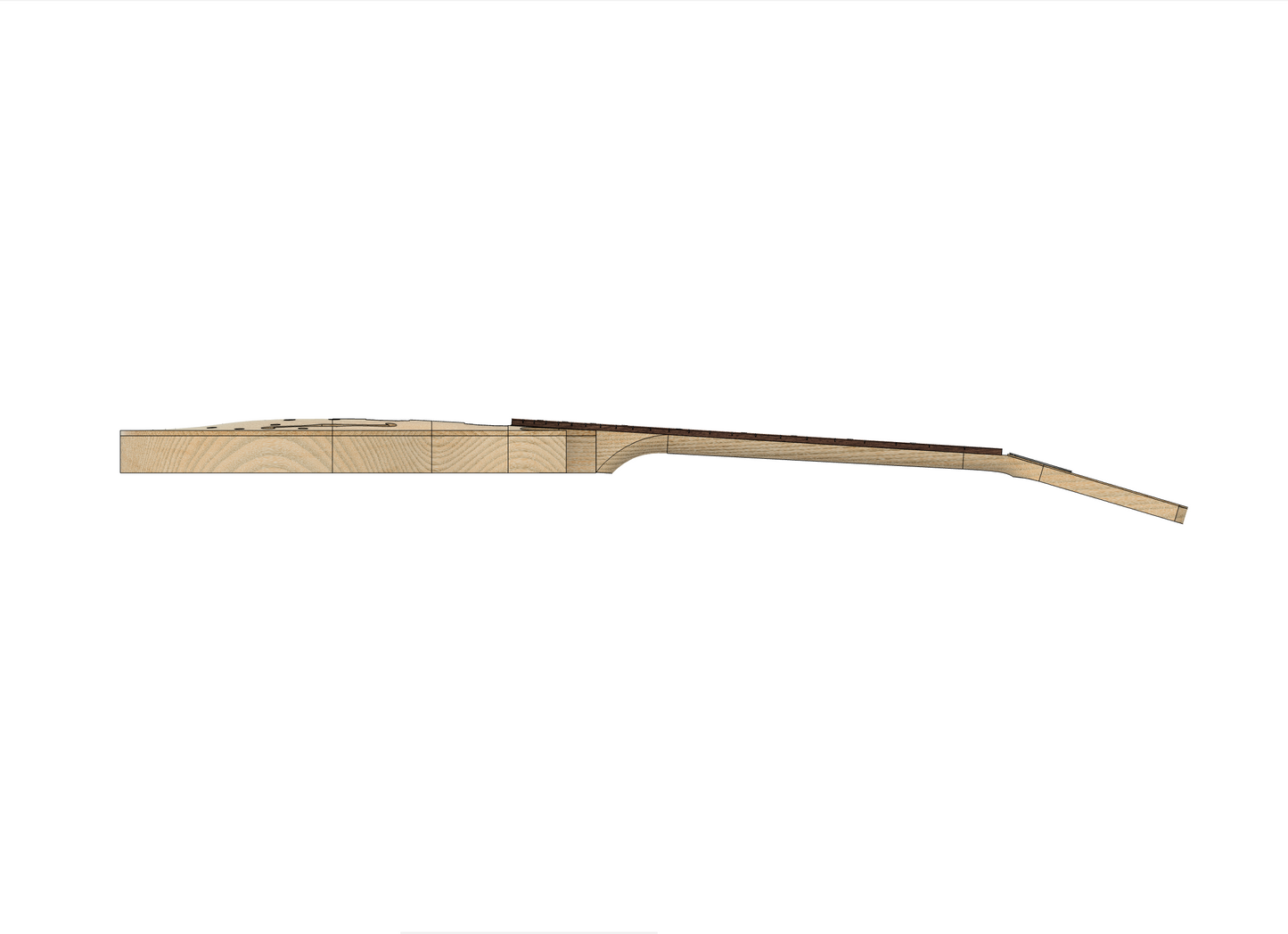

The designs rendered using Autodesk Fusion 360. Upon confirmation of payment, your downloads will be accessible through your Etsy receipt.
Should any issues arise with your order, please don't hesitate to reach out to us. Remember, these files are for personal use only and cannot be resold or shared.
Wishing you success in creating your very own Fender ES-235 !
Markus from cncstuudio
